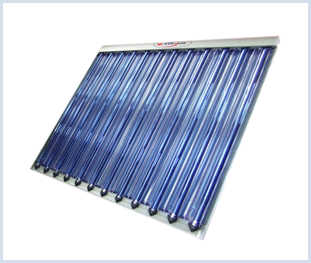

Product application standards: The product was authenticated as new and renewable energy equipment by the New & Renewable Energy Center of Korea Energy Management Corporation
· Dimensions : 1390(L)×1640(W)×100(H)mm (heat collection
..area: 2.28㎡)
· Material of heat collection plate : glass tube + aluminum
.. coating (selective coating)
· Transparent material : Borosilicate glass (thickness:
.. 2.0mm)
· Reflection plate : Attachment of CPC reflector
· External case : Aluminum
· · Thermal transmission type : U-type copper pipe (15mm of
.. cast iron pipe and 8mm of branch pipe)

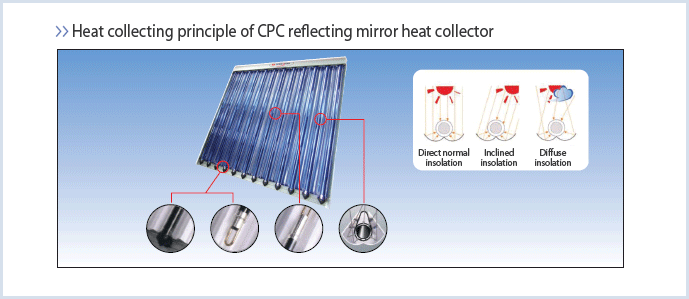

- Specific feature of heat collector: The duplicated vacuum
.. pipe consists of internal glass pipes with absorption
.. membrane made of aluminum coating, air-tight vacuum
.. space separated from external pipes in order to minimize
.. the loss of absorbed heat, and heat collectors equipped
.. with CPC reflectors to collect direct and diffused reflection
.. light for transfer of the collected heat through heat transfer
.. pipes; this heat collector is suitable to produce moderate to
.. high temperature water. |
 |
